Struggling to choose the optimal coil packaging solution for your metal production facility? Inadequate packaging leads to damaged goods, customer complaints, and profit erosion. With multiple coil packing line configurations available, selecting the wrong system can cripple your operational efficiency. This comprehensive guide examines all major packaging line types to match your specific throughput, budget, and material requirements.

Your ideal coil packaging line depends on production volume, material specifications, and automation requirements. Semi-automatic lines offer flexibility for low-to-medium throughput (5-15 coils/hour) at lower capital investment. Fully automatic systems handle high-volume operations (20-50 coils/hour) with minimal labor. Inline slitting-integrated solutions provide continuous processing for slit coil operations, while robotic packing cells deliver ultimate flexibility for mixed product runs. Key selection factors include coil dimensions, output targets, available floor space, and future scalability needs.

Now that you understand the core decision framework, let’s dissect each system’s capabilities in detail. You’ll discover precise technical specifications, operational advantages, and real-world implementation scenarios to make an informed investment decision.

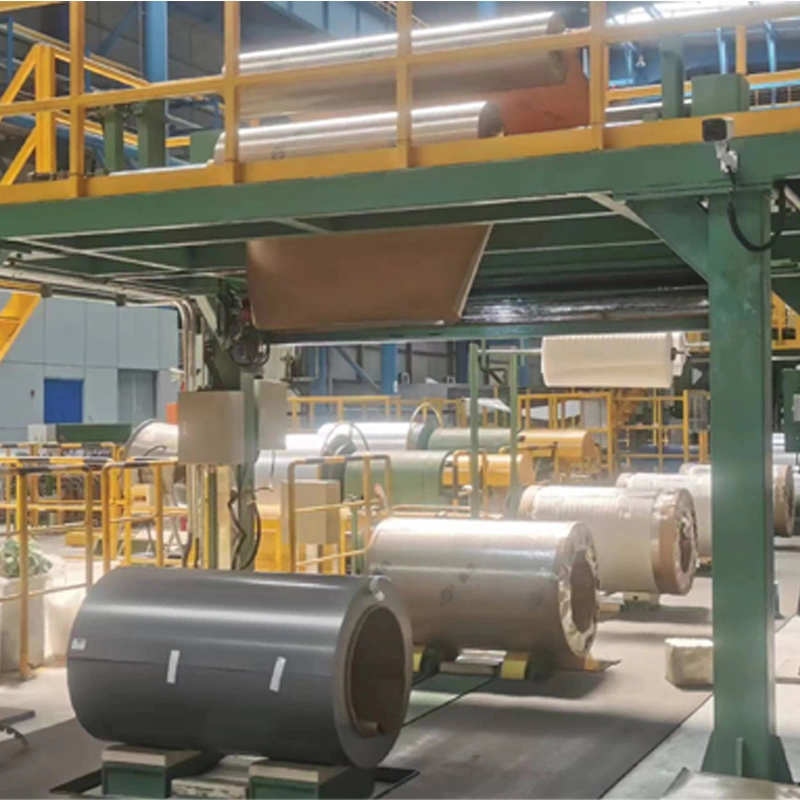

Semi-Automatic Coil Packing Lines: Balancing Flexibility and Cost

When budget constraints meet moderate production demands, semi-automatic systems emerge as a compelling solution. These lines optimize human-machine collaboration for facilities transitioning from manual packing. But what operational compromises should you anticipate with this configuration?

Semi-automatic coil packing lines combine manual coil positioning with automated strapping/wrapping functions, typically processing 8-12 coils per hour. Operators load coils onto turntables or conveyors, initiating programmed wrapping sequences. These systems excel in environments with diverse coil dimensions where quick changeovers are essential. While requiring 1-2 operators per shift, they reduce packaging labor by 60% versus manual methods and deliver consistent tension control for transit protection.

The core advantage of semi-automatic configurations lies in their modular design. Facilities can implement them in phases – starting with a basic strapping station and later adding automatic film wrapping or corner protector application. This scalability makes them ideal for growing operations. A typical setup includes:

• Motorized turntable with adjustable diameter settings
• PLC-controlled strapping head (polyester or steel strapping)
• Pre-stretch film wrapper with adjustable force (250%-300% stretch ratio)
• Manual corner guard applicator station
• Safety light curtains for operator protection

Operational workflow involves:

1. Crane places coil on motorized turntable
2. Operator secures coil with minimal strapping
3. Activates automated rotation while film wrapper applies protective layers
4. Manual application of edge protection (if required)
5. Final automatic strapping with tension monitoring

Feature	Specification Range	Advantage	Limitation
Throughput	5-15 coils/hour	Matches medium-volume production	Insufficient for HVA lines
Changeover Time	8-15 minutes	Handles diverse coil sizes efficiently	Requires skilled operators
Labor Requirement	1-2 operators/shift	60% labor reduction vs manual	Higher OPEX than full auto
Floor Space	10m x 5m	Compact footprint for retrofits	Limited expansion capability
Investment Range	$85,000 – $220,000	Accessible automation entry point	Limited ROI at >20 coils/hour

These systems particularly shine in specialty steel mills producing sub-1000 coils monthly with frequent size changes. The manual loading component accommodates non-standard coil geometries that would jam fully automated systems. However, facilities targeting production above 20 coils/hour should evaluate automated loading options to prevent bottlenecks.

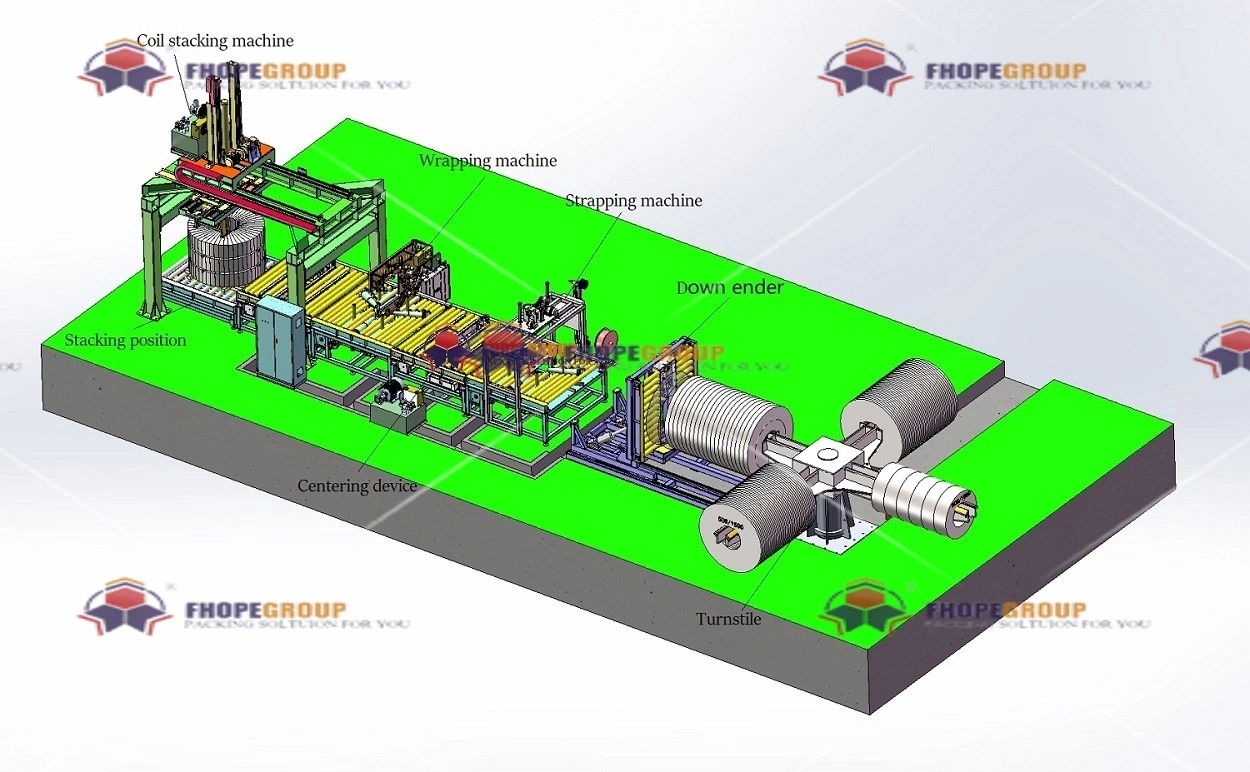

Fully Automatic Packing Lines: High-Speed Precision Engineering

For mills producing over 15,000 tons monthly, manual interventions become productivity killers. Fully automatic coil packaging lines eliminate human handling through integrated material flow systems. How do these engineered solutions maintain precision at industrial speeds?

Fully automatic coil packing lines integrate robotic loading, precision wrapping, and intelligent strapping into seamless systems handling 20-50 coils/hour. These lines feature automated coil transfer from production to packaging, laser-guided positioning systems, and programmable logic controllers that adjust wrapping parameters based on coil dimensions. They deliver consistent packaging quality with near-zero manual intervention, achieving 98-99% operational uptime when properly maintained.

The engineering behind these systems focuses on synchronization. Coils transition from conveyor to processing station via automated guided vehicles (AGVs) or roller conveyors with integrated weighing systems. Key subsystems include:

• Robotic Coil Manipulators: 6-axis robots with vacuum or magnetic lifters position coils within 2mm tolerance
• Auto-Detection Sensors: Laser scanners measure coil OD/ID and width to adjust wrapping programs
• Multi-Station Turntables: Allow simultaneous wrapping and strapping operations
• Intelligent Film Control: Pre-stretch units with tension feedback maintain optimal force
• Integrated Labeling: Print-and-apply systems with QR/barcode tracking

Critical technical specifications:

graph LR
A[Coil Infeed] --> B(Auto-Dimensioning)
B --> C{Robotic Positioning}
C --> D[Rotary Wrapping Station]
D --> E[Auto-Strapping]
E --> F[Corner Protection]
F --> G[Labeling]
G --> H[Outfeed Conveyor]

These systems demand significant infrastructure: reinforced flooring for 20-ton capacities, 480V power supplies, and compressed air at 6-8 bar. Maintenance protocols require daily sensor calibration and weekly lubrication cycles. The automation premium delivers ROI within 18-36 months for facilities running 24/5 operations through:

• 80% labor reduction versus semi-automatic systems
• 30-50% film/strapping savings via precision application
• Near-elimination of transit damage claims
• Production data integration with plant ERP systems

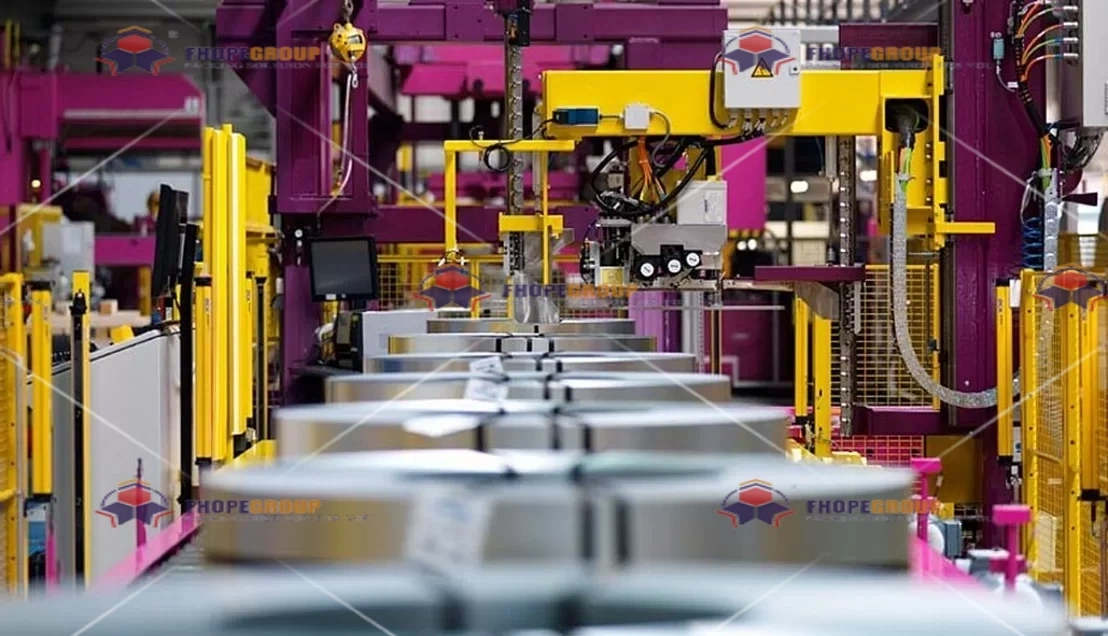

Inline Slitting Integration: The Seamless Solution

Why handle coils twice when you can integrate slitting and packaging? Inline systems revolutionize material flow for slit coil producers. But what technical hurdles must you overcome for successful implementation?

Inline slit coil packaging systems directly connect slitting machinery with automated packaging units, creating continuous processing lines. These integrated solutions handle coils up to 30 tons, maintaining precise alignment through transfer mechanisms that eliminate intermediate handling. By packaging immediately after slitting, they prevent edge damage to sensitive materials like automotive-grade aluminum or electrical steels, while reducing floor space requirements by 40% versus separate operations.

Technical integration demands precision synchronization between slitting and packaging subsystems. The core components must maintain tolerances within 0.5mm during high-speed transfers. Critical engineering considerations include:

1. Synchronized Material Handling

   • Powered roller conveyors with variable frequency drives
   • Photoelectric sensors coordinating line speed
   • Hydraulic lifting/lowering transfer decks

2. Automated Dimension Adaptation

   • Laser measurement systems feeding data to PLCs	Coil Parameter	Measurement Accuracy	Adjustment Speed
     Outer Diameter	±2mm	<3 seconds
     Inner Diameter	±0.5mm	<2 seconds
     Coil Width	±1mm	<5 seconds

3. Packaging Process Controls

   • Automatic core plug insertion systems
   • Programmable strapping patterns based on coil size
   • Edge protection applicators with pneumatic pressure control

Material-specific configurations:

• Stainless Steel Lines: Incorporate non-magnetic handling systems
• Copper/Brass Systems: Implement scratch-prevention measures
• Pre-Painted Coils: Utilize non-contact wrapping technologies

Successful implementation requires matching line speeds between slitting and packaging sections. Industry standards recommend:

Slitting Speed ≤ Packaging Speed × 0.85

This buffer prevents bottlenecks during changeovers. Facilities processing diverse materials should opt for modular designs allowing quick reconfiguration between carbon steel, aluminum, and specialty alloy runs.

Robotic Packaging Cells: Ultimate Flexibility

Robotic coil packing cells provide unmatched adaptability for facilities handling diverse coil dimensions and packaging specifications. These systems utilize 3D vision-guided robots that dynamically adjust to coil geometry variations up to 40% without reprogramming. With changeovers under 5 minutes and ability to handle coils from 0.5-5 meter diameters, robotic cells solve flexibility challenges in job-shop environments producing hundreds of SKUs.

The transformative element in modern robotic packaging is adaptive intelligence. Unlike fixed automation, these systems incorporate:

• Machine Learning Algorithms: Analyze historical packaging data to optimize patterns
• Force-Torque Sensing: Adjust end-effector pressure for delicate materials
• Digital Twin Integration: Simulate packaging processes before physical runs
• Cloud-Based Monitoring: Provide real-time OEE tracking across facilities

Implementation follows a phased approach:

1. Feasibility Study: 3D laser scanning of existing coil inventory
2. Cell Design: Customized work envelope planning
3. Tooling Selection: Vacuum/magnetic end effectors for material-specific handling
4. Safety Integration: Collaborative robot fencing with dynamic speed monitoring
5. Validation Testing: 500-cycle reliability verification

Financial justification comes from eliminating changeover downtime and reducing specialized labor. Facilities report:

• 90% reduction in changeover time versus conventional lines
• 40% decrease in packaging material waste
• 30% higher equipment utilization rates
• Ability to package non-standard geometries (ovalized coils, trapezoidal bundles)

Maintenance requires specialized training but offers remote diagnostics. The technology premium delivers strongest ROI in facilities with:

• 50 different coil configurations monthly

• Premium materials requiring delicate handling
• Frequent small-batch production runs
• Limited floor space for multiple dedicated lines

Conclusion

Selecting the optimal coil packing line requires balancing throughput targets, material characteristics, and operational flexibility. Semi-automatic systems deliver cost-effective automation for medium-volume facilities, while fully automated lines maximize efficiency in high-throughput environments. Inline integration revolutionizes slit coil processing by eliminating handling damage, and robotic cells provide unprecedented adaptability for job-shop operations. Remember: the most advanced system isn’t necessarily the right solution—match technology to your specific production profile and growth trajectory. For facilities specializing in narrow-width materials, our deep dive into slit coil packaging explores additional technical considerations. Implement these insights to transform your packaging operations from a cost center to a competitive advantage.
