Ever struggled with damaged steel coils during transit? Imagine the financial losses from corrosion or dents ruining premium-grade materials. These vulnerabilities plague manufacturers daily, risking client trust and profit margins. The solution lies in automated coil packing lines – engineered systems that transform raw coils into fortress-like packages. Let’s explore how these systems eliminate waste while boosting efficiency.

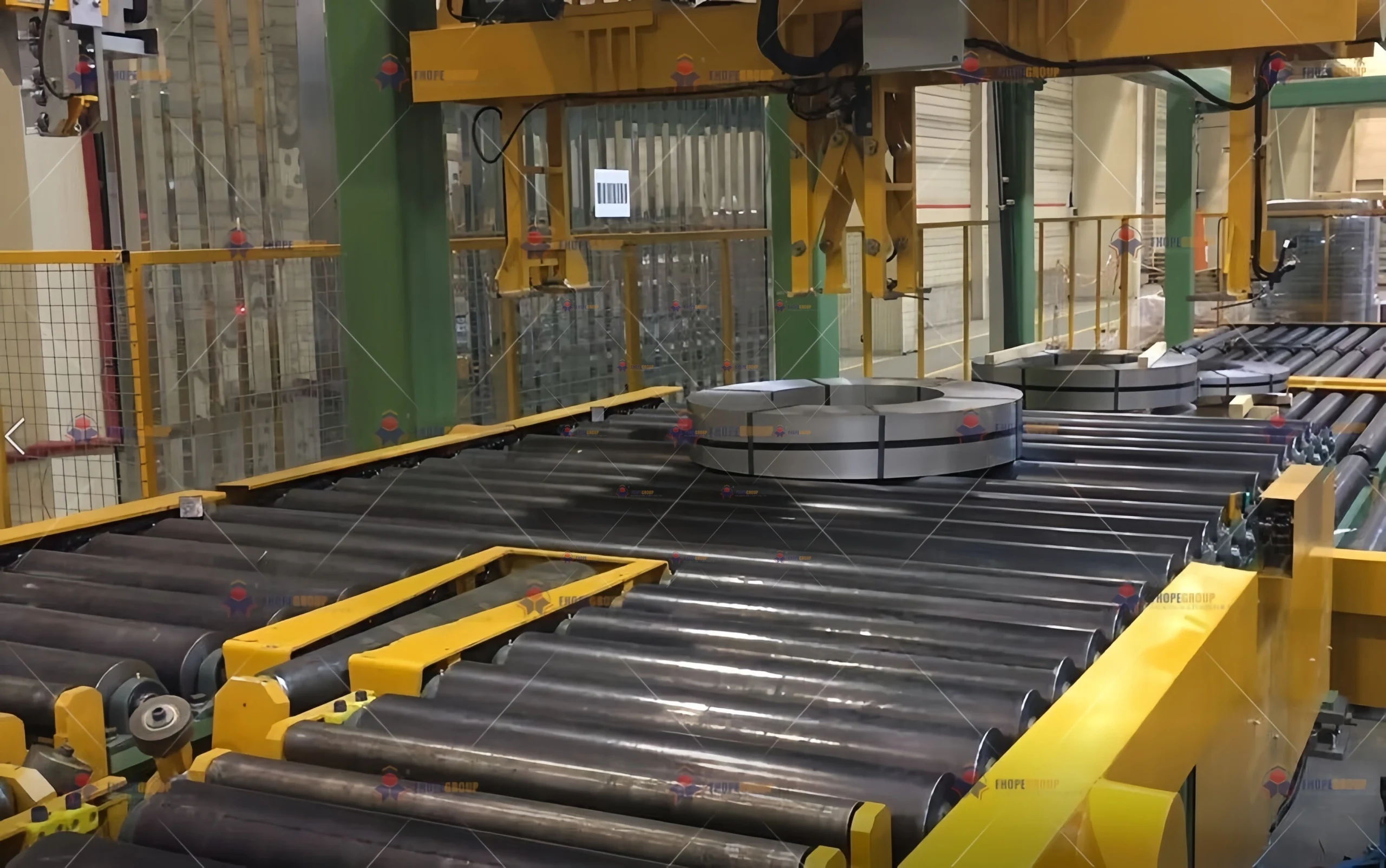

A coil packing line is an integrated industrial automation system designed to protect, secure, and prepare metal coils (steel, aluminum, copper) for storage and transportation. It typically includes decoiling, wrapping, strapping, labeling, and palletizing stages. These automated lines apply protective materials like stretch film, corner boards, and waterproof sheets while ensuring precise tension control. By minimizing human intervention, they prevent coil deformation, reduce material waste by up to 30%, and accelerate throughput to over 20 coils/hour. Modern systems incorporate IoT sensors for real-time monitoring and predictive maintenance, making them essential for metal processing industries prioritizing product integrity and supply chain reliability.

Transitioning from manual to automated packaging isn’t just an upgrade – it’s a strategic overhaul. As we dissect each component and technology ahead, you’ll discover how tailored packing solutions can solve your specific pain points while future-proofing operations.

What Defines a Modern Coil Packing Line? Core Components Unveiled

Picture this: a production manager faces recurring coil edge damage despite using premium films. The culprit? Outdated equipment missing critical tensioners. Such gaps in packaging lines cost thousands monthly. Today’s systems solve this through synchronized modules working in concert.

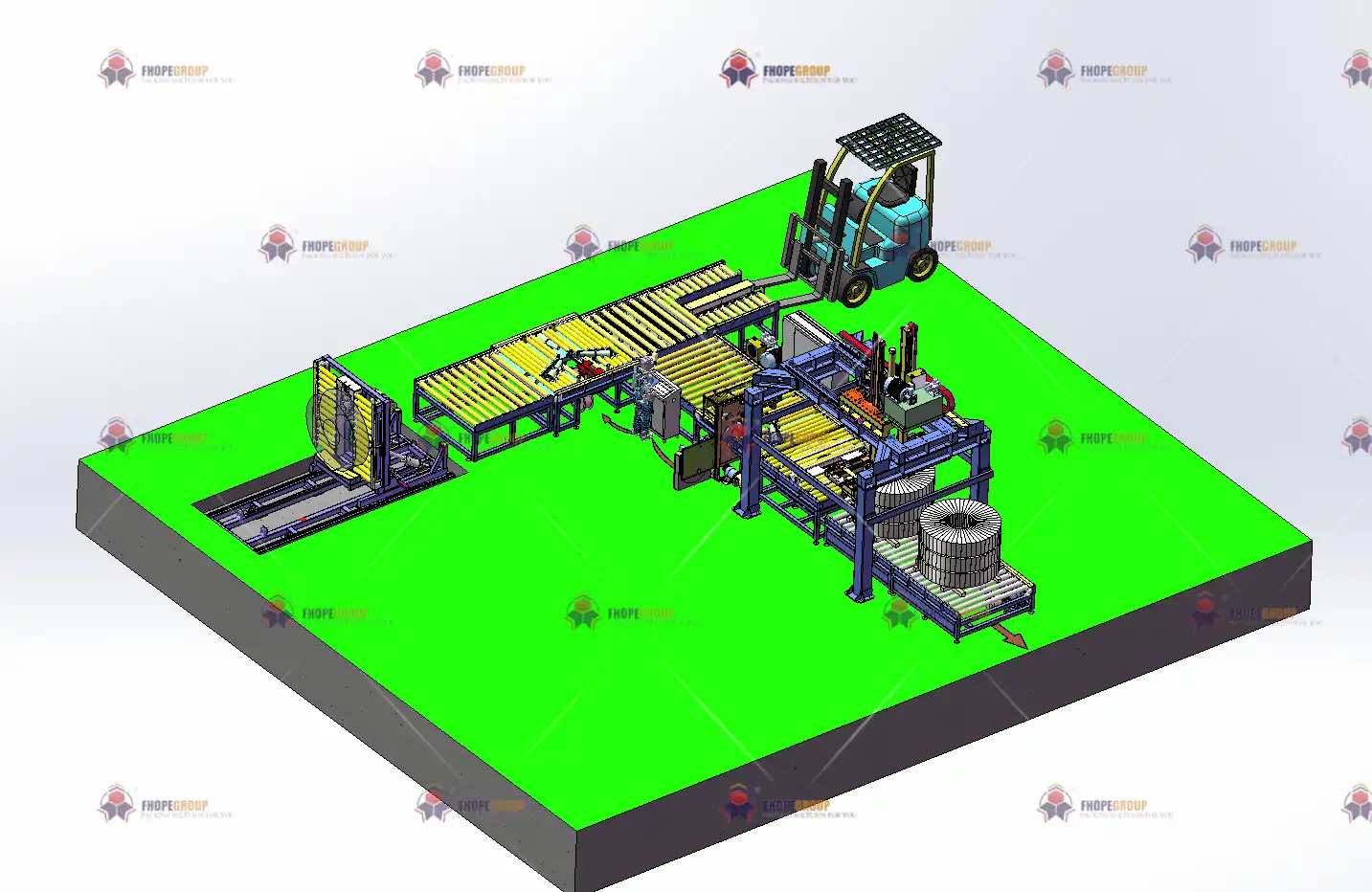

Contemporary coil packing lines integrate six essential subsystems: uncoilers for material feeding, pre-stretch wrappers applying film at optimal tension, strapping machines securing coils with steel/PP bands, corner protector applicators shielding edges, automated labeling units embedding traceability data, and robotic palletizers for load stabilization. Advanced lines feature AI-driven vision systems detecting film gaps in real-time and adaptive tension control compensating for coil diameter variations. This orchestration reduces packaging time by 40% versus manual processes while eliminating common failures like film breaks or loose strapping.

Engineering Breakdown: Subsystems & Synergies

The uncoiler acts as the line’s foundation, handling coil weights up to 30 tons with motorized mandrels preventing surface scratches. Precision matters here – hydraulic expansion systems ensure zero slippage during high-speed rotations. Next, the wrapping station deploys pre-stretch technology elongating film molecules before application. This increases yield by 250% compared to non-stretched films while maintaining puncture resistance.

Strapping modules deserve special attention. Dual-head systems apply cross-banding in under 45 seconds using tension-controlled servo motors. For corrosive environments, fusion-sealed joints replace traditional seals – a critical upgrade for maritime shipments. The real game-changer? Intelligent corner protectors. These aren’t simple cardboard pieces; 3D-molded polymer versions clip onto coils automatically, absorbing impacts equivalent to 5G force.

Component	Function	Innovation	Impact
Pre-stretch Wrapper	Applies protective film	Laser-guided film tracking	Reduces film usage by 30%
Auto-Strapping Unit	Secures coil circumference	Predictive tension adjustment	Prevents band loosening due to temperature shifts
Robotic Palletizer	Loads coils onto bases	Force-sensitive grippers	Eliminates surface deformation during handling
IoT Gateway	Monitors system health	Anomaly detection algorithms	Cuts downtime by 25% via predictive maintenance

Waterproofing stages illustrate engineering sophistication. Instead of basic tarpaulins, modern lines use multi-layer barriers: first, desiccant pads absorb internal moisture; then, heat-sealed polymer sheets create hermetic seals. This dual approach prevents "coil sweating" – a phenomenon causing $2.3B in annual corrosion damage industry-wide.

Key Technologies Revolutionizing Coil Packaging Systems

Remember when operators manually adjusted machines for different coil sizes? Those days are gone. Today’s systems self-configure through technologies that blend physical precision with digital intelligence.

The technological leap in coil packaging centers on three innovations: adaptive control systems using pressure sensors to auto-adjust wrapping tension based on coil diameter fluctuations, integrated Industry 4.0 platforms enabling remote diagnostics via digital twins, and sustainable material handlers reducing plastic waste through recyclable films. These advancements yield 99.8% packaging consistency while cutting energy consumption by 35% – transforming packing lines from cost centers into strategic assets.

The Intelligence Layer: IoT & AI Convergence

Sensors embedded throughout the line create a constant feedback loop. Consider vibration monitors on strapping heads: they detect minute oscillations indicating worn bearings months before failure. This data feeds into cloud-based analytics platforms like PackAssist Pro, which correlates historical patterns across multiple facilities. Result? Maintenance shifts from calendar-based to condition-based, boosting overall equipment effectiveness (OEE) by 18%.

Material innovations deserve equal attention. Nano-coated films now dominate high-value coil markets. Unlike traditional polyethylene, these incorporate silicate particles creating oxygen barriers 200x more effective. For automotive steel coils requiring 12-month corrosion resistance, this extends protection lifecycles without thickness increases. Meanwhile, bio-based strapping materials like Armafiber offer tensile strengths matching steel while being fully compostable – a sustainability win reducing carbon footprints by 4 tons annually per line.

The user interface revolution is equally transformative. Augmented reality (AR) maintenance guides project holographic schematics onto machinery. Technicians see torque values overlay directly on bolts needing adjustment, slashing repair time by 70%. Such technologies converge to create self-optimizing systems where packaging parameters auto-adjust between carbon steel and sensitive copper alloys without human input.

Step-by-Step: How Automated Coil Packing Lines Operate

Visualize an unwrapped coil entering the system – raw, vulnerable, and handling-ready. In 90 seconds, it emerges as a shielded unit prepped for global shipment. This metamorphosis follows a meticulously choreographed sequence.

Automated coil packing unfolds in seven stages: coil centering on motorized rollers, ID/OD scanning for custom packaging protocols, pre-stretch wrapping (3-5 layers at 250% stretch ratio), automated corner guard application, cross-strapping at programmable intervals, waterproof enclosure installation, and robotic palletizing. Modern lines complete this cycle in under 2 minutes through synchronized servo movements, with laser alignment ensuring ±0.5mm placement accuracy during all operations.

Critical Phase Analysis: Tension Control & Material Optimization

Phase 3 (wrapping) exemplifies engineering precision. As the coil rotates, load cells monitor radial force while infrared sensors track film thickness. The system dynamically adjusts carriage speed and pre-stretch ratios using this real-time data. For thin-gauge aluminum coils requiring delicate handling, tension reduces to 15N; for heavy steel coils, it ramps to 80N to prevent film slippage. This variability prevents both deformation and material waste.

Stage	Duration	Key Parameters	Quality Control Checkpoints
Coil Positioning	15 sec	Centering accuracy <2mm	Laser alignment verification
Wrapping	45 sec	Film tension: 15-80N	Overlap consistency monitoring
Strapping	20 sec	Band tension: 600-2000kgf	Seal integrity testing
Weatherproofing	25 sec	Seal temperature: 180°C	Moisture sensor activation

Phase 5 (strapping) reveals material science advancements. When applying steel bands, friction welding replaces traditional seals. Electrical current pulses through band overlaps, generating 1,500°C micro-welds in 0.3 seconds – creating joints stronger than the band itself. For environments banning metal, composite straps undergo ultrasonic bonding where high-frequency vibrations melt polymer fibers into homogeneous seals.

Final weatherproofing phases now incorporate "smart materials." Phase-change membranes in waterproof sheets absorb heat during container transit, maintaining internal temperatures below dew point. This prevents condensation – the invisible killer responsible for 67% of corrosion claims. Each packed coil exits with a digitally encoded label containing packaging metadata accessible via blockchain for authenticity verification.

Selecting Your Ideal Coil Packaging System: Critical Evaluation Framework

Choosing a coil packing line demands evaluating five non-negotiable factors: throughput requirements (coils/hour), coil specs (diameter/weight range), facility constraints (floor space/ceiling height), environmental compliance needs (VOC emissions/recyclability), and connectivity protocols (OPC UA/Modbus compatibility). Prioritize suppliers offering modular scalability – systems expanding from 5 to 50 coils/hour via add-on stations prevent $500k+ premature replacements. Always verify third-party certifications like CE Marking and ANSI/PMMI B155.1 safety compliance.

Total Cost Analysis & Future-Proofing Strategies

Look beyond sticker prices. Calculate cost-per-coil encompassing film consumption, energy draw, maintenance intervals, and labor inputs. For example: System A costs $350,000 but uses 25% less film via advanced pre-stretch versus System B at $280,000. At 20 coils/hour, System A pays back its premium in 14 months. Demand lifecycle simulations from vendors – reputable providers run digital twins showing performance at year 5/10.

Modularity equals longevity. Seek systems allowing incremental upgrades: start with core wrapping/strapping, later add automated labeling when traceability regulations tighten. Ensure mechanical interfaces accept future tech like collaborative robots (cobots) for manual process integration. Verify control systems have unused I/O points – adding IoT sensors shouldn’t require new PLCs.

Environmental compliance is non-negotiable. European-bound coils? Systems must handle EU Directive 94/62/EC-compliant recyclable films. Operating in humid climates? Specify integrated desiccant dispensers. Leading suppliers like Fhope Pack offer climate simulation testing, proving packaging integrity after 72-hour humidity chamber exposure. Remember: certifications are meaningless without validation reports – demand third-party test videos showing waterproofing performance under simulated monsoon conditions.

Conclusion: Engineering Excellence in Coil Protection

Coil packing lines represent industrial automation at its most impactful – transforming vulnerability into resilience. From adaptive tension control preserving delicate surfaces to blockchain-enabled traceability, these systems merge mechanical precision with digital intelligence. The journey from raw coil to shipment-ready package now occurs with <0.2% error rates while consuming fewer resources. As metal producers face escalating quality demands, investing in modular, IoT-enabled packaging solutions becomes not just strategic, but survival-critical. Those embracing this evolution will dominate markets where pristine coil condition is the ultimate competitive edge. For deeper technical exploration, examine how Packaging Systems integrate with Industry 4.0 infrastructures.
